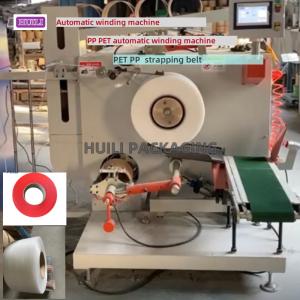

Servo Motor Automatic Wrapping Machine PP/PET Strapping Automatic Winding Machine PP PET Strapping Equipment Winder
Description of PP PET strapping automatic winding machine:
1. The automatic winder uses a servo motor to arrange the wires, which is suitable for winding PP strapping band with a width of 5-19mm. The corresponding bandwidth is selected through the PLC touch screen for winding and winding. The whole process does not require manual replacement of the transmission gear and belt slot.
2. After the whole roll of strapping tape is wound, the machine automatically stops, automatically replaces the paper tube, automatically cuts the strapping tape, fixes the strapping tape head with a clip, and automatically changes the roll for winding. The whole process is completed automatically.
3. The rewinding axis uses the torque mode control of the servo motor. The torque during winding can be set and debugged through the PLC touch screen, so that strapping tapes of different weights or widths can be wound with appropriate torque, and the bending deformation of the strapping tape after winding can be minimized.
FEATURES
① PLC Control------ PLC control allows for intuitive parameter settings, storage of multiple specifications, and one-touch switching.
② Servo Motor------- Servo motor control ensures neater winding, smoother operation, and reduced malfunctions, allowing for integration with other production line equipment.
③ Additional Features-------- Automatic lamination of finished PP straps and automatic switching between different paper cores.
PP Parameters of automatic winding machine
| Name | Automatic Winding Machine |
| Tape width | 5-19mm |
| Thickness | 0.4-1.2mm |
| Control mode | servo motor |
| Pressure | 4-7kgf |
| PLC control | YES |
| Paper tube | Ø200*180/190mm |
| Max weight | 10kg/roll |
| power single-phase | 220V |
| Weight | 650KG |
| Overall dimension | (L)1900mm*(W)1850mm*(H) 1800mm |
EFFICIENT AUTOMATION
① Fully Automatic Operation---------- Simply set the parameters, and the machine automatically completes the wrapping, lifting, and strapping processes, significantly reducing manual intervention.
② Fast Packaging----------- Adjustable wrapping speed (typical line speed: 200-300 m/min) makes it suitable for large-scale continuous operations, increasing efficiency 3-5 times compared to manual wrapping.
③ One-Button Start--------- Simple operation, reducing worker skill requirements.
Automatic winding machine: winding the whole, winding smoothly, finished PET plastic steel belt display:
FAQ:
Q: Where is the Automatic winding machine made?
A: China
Q: What is the voltage of the Automatic winding machine?
A: 220V
Q: What mode is the Automatic winding machine controlled by?
A: Servo motor control
Q: Can the Automatic winding machine be purchased separately?
A: Yes
Q: Does the Automatic winding machine require manual operation?
A: No, the entire process is controlled by PLC computerization.
